CN 1 - POINT TO POINT NETWORK WITH DUPLEX LINKS
1. Implement three nodes point – to – point network with duplex links between them. Set the queue size, vary the bandwidth and find the number of packets dropped.
cn1.tcl - PROGRAM
# Simulation parameters setup
set val(stop) 6.0 ; # stopping time of the simulation
# Initialization
#Create a ns simulator
set ns [new Simulator]
#Open the NS trace file
set tracefile [open 1.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open 1.nam w]
$ns namtrace-all $namfile
# Nodes Definition
#Create 3 nodes
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
# Links Definition
#Createlinks between nodes
$ns duplex-link $n1 $n2 1000Kb 60ms DropTail
$ns queue-limit $n1 $n2 14
$ns duplex-link $n2 $n3 500Kb 60ms DropTail
$ns queue-limit $n2 $n3 4
$ns duplex-link-op $n1 $n2 queuePos 0.5
$ns duplex-link-op $n2 $n3 queuePos 0.2
# Agents Definition
#Setup a TCP connection
set tcp0 [new Agent/TCP]
$ns attach-agent $n1 $tcp0
set sink1 [new Agent/TCPSink]
$ns attach-agent $n3 $sink1
$ns connect $tcp0 $sink1
$tcp0 set packetSize_ 1500
# Applications Definition
#Setup a FTP Application over TCP connection
set ftp0 [new Application/FTP]
$ftp0 attach-agent $tcp0
$ns at 0.2 "$ftp0 start"
$ns at 5.0 "$ftp0 stop"
# Termination
#Define a 'finish' procedure
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam 1.nam &
exit 0
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn1.awk - PROGRAM
BEGIN {
count=0;
total=0;
}
{
event=$1;
if(event=="d") {
count++;
}
}
END {
printf("No of packets dropped : %d\n",count);
}

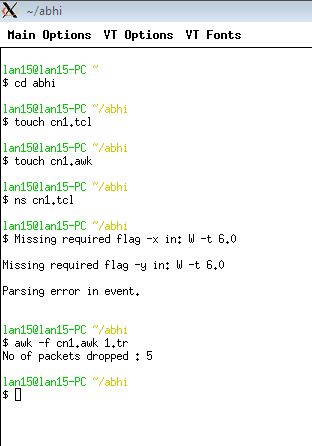

STEPS :
( click on image to zoom )
OUTPUT :
( click on image to zoom )
CN 2 - TRANSMISSION OF PING MESSAGES
2. Implement transmission of ping messages/trace route over a network topology consisting of 6 nodes and find the number of packets dropped due to congestion.
cn2.tcl - PROGRAM
set val(stop) 10.0 ; # time of simulation end
#Create a ns simulator
set ns [new Simulator]
#Open the NS trace file
set tracefile [open 3.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open 3.nam w]
$ns namtrace-all $namfile
#Create 7 nodes
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
set n4 [$ns node]
set n5 [$ns node]
set n6 [$ns node]
#Create links between nodes
$ns duplex-link $n0 $n1 1Mb 50ms DropTail
$ns queue-limit $n0 $n1 50
$ns duplex-link $n0 $n3 1Mb 50ms DropTail
$ns queue-limit $n0 $n3 50
$ns duplex-link $n0 $n4 1Mb 50ms DropTail
$ns queue-limit $n0 $n4 50
$ns duplex-link $n0 $n5 1Mb 50ms DropTail
$ns queue-limit $n0 $n5 2
$ns duplex-link $n0 $n2 1Mb 50ms DropTail
$ns queue-limit $n0 $n2 2
$ns duplex-link $n0 $n6 1Mb 50ms DropTail
$ns queue-limit $n0 $n6 1
#Give node position (for NAM)
$ns duplex-link-op $n0 $n1 orient right-up
$ns duplex-link-op $n0 $n2 orient right
$ns duplex-link-op $n0 $n3 orient right-down
$ns duplex-link-op $n0 $n4 orient left-down
$ns duplex-link-op $n0 $n5 orient left
$ns duplex-link-op $n0 $n6 orient left-up
Agent/Ping instproc recv {from rtt} {
$self instvar node_
puts "node [$node_ id] received ping answer from $from with round-trip-time $rtt ms."
}
set p1 [new Agent/Ping]
set p2 [new Agent/Ping]
set p3 [new Agent/Ping]
set p4 [new Agent/Ping]
set p5 [new Agent/Ping]
set p6 [new Agent/Ping]
$ns attach-agent $n1 $p1
$ns attach-agent $n2 $p2
$ns attach-agent $n3 $p3
$ns attach-agent $n4 $p4
$ns attach-agent $n5 $p5
$ns attach-agent $n6 $p6
$ns connect $p1 $p4
$ns connect $p2 $p5
$ns connect $p3 $p6
$ns at 0.2 "$p1 send"
$ns at 0.4 "$p2 send"
$ns at 0.6 "$p3 send"
$ns at 1.0 "$p4 send"
$ns at 1.2 "$p5 send"
$ns at 1.4 "$p6 send"
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam 3.nam &
exit 0
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn2.awk - PROGRAM
BEGIN {
count=0;
}
{
event=$1;
if(event=="d") {
count++;
}
}
END {
printf("No of packets dropped : %d\n",count);
}
cn2.tcl - PROGRAM
set val(stop) 10.0 ; # time of simulation end
#Create a ns simulator
set ns [new Simulator]
#Open the NS trace file
set tracefile [open 3.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open 3.nam w]
$ns namtrace-all $namfile
#Create 7 nodes
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
set n4 [$ns node]
set n5 [$ns node]
set n6 [$ns node]
#Create links between nodes
$ns duplex-link $n0 $n1 1Mb 50ms DropTail
$ns queue-limit $n0 $n1 50
$ns duplex-link $n0 $n3 1Mb 50ms DropTail
$ns queue-limit $n0 $n3 50
$ns duplex-link $n0 $n4 1Mb 50ms DropTail
$ns queue-limit $n0 $n4 50
$ns duplex-link $n0 $n5 1Mb 50ms DropTail
$ns queue-limit $n0 $n5 2
$ns duplex-link $n0 $n2 1Mb 50ms DropTail
$ns queue-limit $n0 $n2 2
$ns duplex-link $n0 $n6 1Mb 50ms DropTail
$ns queue-limit $n0 $n6 1
#Give node position (for NAM)
$ns duplex-link-op $n0 $n1 orient right-up
$ns duplex-link-op $n0 $n2 orient right
$ns duplex-link-op $n0 $n3 orient right-down
$ns duplex-link-op $n0 $n4 orient left-down
$ns duplex-link-op $n0 $n5 orient left
$ns duplex-link-op $n0 $n6 orient left-up
Agent/Ping instproc recv {from rtt} {
$self instvar node_
puts "node [$node_ id] received ping answer from $from with round-trip-time $rtt ms."
}
set p1 [new Agent/Ping]
set p2 [new Agent/Ping]
set p3 [new Agent/Ping]
set p4 [new Agent/Ping]
set p5 [new Agent/Ping]
set p6 [new Agent/Ping]
$ns attach-agent $n1 $p1
$ns attach-agent $n2 $p2
$ns attach-agent $n3 $p3
$ns attach-agent $n4 $p4
$ns attach-agent $n5 $p5
$ns attach-agent $n6 $p6
$ns connect $p1 $p4
$ns connect $p2 $p5
$ns connect $p3 $p6
$ns at 0.2 "$p1 send"
$ns at 0.4 "$p2 send"
$ns at 0.6 "$p3 send"
$ns at 1.0 "$p4 send"
$ns at 1.2 "$p5 send"
$ns at 1.4 "$p6 send"
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam 3.nam &
exit 0
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn2.awk - PROGRAM
BEGIN {
count=0;
}
{
event=$1;
if(event=="d") {
count++;
}
}
END {
printf("No of packets dropped : %d\n",count);
}
STEPS :
( click on image to zoom )
OUTPUT :
( click on image to zoom )
CN 3 - ETHERNET LAN USING N NODES
3. Implement an Ethernet LAN using n nodes and set multiple traffic nodes and plot congestion window for different source / destination.
cn3.tcl - PROGRAM
# Simulation parameters setup
set val(stop) 10.0 ;# time of simulation end
# Initialization
#Create a ns simulator
set ns [new Simulator]
#Open the NS trace file
set tracefile [open 5.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open 5.nam w]
$ns namtrace-all $namfile
$ns color 1 Blue
$ns color 2 Red
# Nodes Definition
#Create 9 nodes
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
set n4 [$ns node]
set n5 [$ns node]
set n6 [$ns node]
set n7 [$ns node]
set n8 [$ns node]
# Create LAN
$ns make-lan "$n3 $n4 $n5 $n6 $n7 $n8" 512Kb 50ms LL Queue/DropTail
# Links Definition
#Createlinks between nodes
$ns duplex-link $n1 $n0 2.0Mb 50ms DropTail
$ns queue-limit $n1 $n0 50
$ns duplex-link $n2 $n0 2.0Mb 50ms DropTail
$ns queue-limit $n2 $n0 50
$ns duplex-link $n0 $n3 1.0Mb 50ms DropTail
$ns queue-limit $n0 $n3 7
#Give node position (for NAM)
$ns duplex-link-op $n1 $n0 orient right-down
$ns duplex-link-op $n2 $n0 orient right-up
$ns duplex-link-op $n0 $n3 orient right
# Agents Definition
#Setup a TCP/Reno connection
set tcp0 [new Agent/TCP/Reno]
$ns attach-agent $n1 $tcp0
set sink1 [new Agent/TCPSink]
$ns attach-agent $n7 $sink1
$ns connect $tcp0 $sink1
$tcp0 set packetSize_ 1500
$tcp0 set class_ 1
set tfile1 [open cwnd1.tr w]
$tcp0 attach $tfile1
$tcp0 trace cwnd_
#Setup a TCP/Vegas connection
set tcp5 [new Agent/TCP/Vegas]
$ns attach-agent $n2 $tcp5
set sink6 [new Agent/TCPSink]
$ns attach-agent $n8 $sink6
$ns connect $tcp5 $sink6
$tcp5 set packetSize_ 1500
$tcp5 set class_ 2
set tfile2 [open cwnd2.tr w]
$tcp5 attach $tfile2
$tcp5 trace cwnd_
# Applications Definition
#Setup a FTP Application over TCP/Reno connection
set ftp0 [new Application/FTP]
$ftp0 attach-agent $tcp0
$ns at 0.3 "$ftp0 start"
$ns at 8.0 "$ftp0 stop"
#Setup a FTP Application over TCP/Vegas connection
set ftp4 [new Application/FTP]
$ftp4 attach-agent $tcp5
$ns at 0.3 "$ftp4 start"
$ns at 8.0 "$ftp4 stop"
# Termination
#Define a 'finish' procedure
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam 5.nam &
exit 0
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn3.awk - PROGRAM
BEGIN{}
{
if($6=="cwnd_")
{ printf("%f\t%f\n",$1,$7); }
}
END{}
STEPS :
( click on image to zoom )
OUTPUT :
( click on image to zoom )
X_GRAPH -1 :
( click on image to zoom )
X_GRAPH -2 :
( click on image to zoom )
X_GRAPH -3 :
( click on image to zoom )
CN 4- SIMPLE ESS IN WIRE-LESS LAN
4. Implement simple ESS and with transmitting nodes in wire-less LAN by simulation and determine the performance with respect to transmission of packets.
cn4.tcl - PROGRAM
# Simulation parameters setup
set val(chan) Channel/WirelessChannel ;# channel type
set val(prop) Propagation/TwoRayGround ;# radio-propagation model
set val(netif) Phy/WirelessPhy ;# network interface type
set val(mac) Mac/802_11 ;# MAC type
set val(ifq) Queue/DropTail/PriQueue ;# interface queue type
set val(ll) LL ;# link layer type
set val(ant) Antenna/OmniAntenna ;# antenna model
set val(ifqlen) 50 ;# max packet in ifq
set val(nn) 2 ;# number of mobilenodes
set val(rp) DSDV ;# routing protocol
set val(x) 700 ;# X dimension of topography
set val(y) 444 ;# Y dimension of topography
set val(stop) 10.0 ;# time of simulation end
# Initialization
#Create a ns simulator
set ns [new Simulator]
#Setup topography object
set topo [new Topography]
$topo load_flatgrid $val(x) $val(y)
create-god $val(nn)
#Open the NS trace file
set tracefile [open out.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open out.nam w]
$ns namtrace-all $namfile
$ns namtrace-all-wireless $namfile $val(x) $val(y)
set chan [new $val(chan)];#Create wireless channel
# Mobile node parameter setup
$ns node-config -adhocRouting $val(rp) \
-llType $val(ll) \
-macType $val(mac) \
-ifqType $val(ifq) \
-ifqLen $val(ifqlen) \
-antType $val(ant) \
-propType $val(prop) \
-phyType $val(netif) \
-channel $chan \
-topoInstance $topo \
-agentTrace ON \
-routerTrace ON \
-macTrace ON \
-movementTrace ON
# Nodes Definition
#Create 2 nodes
set n0 [$ns node]
$n0 set X_ 268
$n0 set Y_ 339
$n0 set Z_ 0.0
$ns initial_node_pos $n0 20
set n1 [$ns node]
$n1 set X_ 428
$n1 set Y_ 344
$n1 set Z_ 0.0
$ns initial_node_pos $n1 20
# Generate movement
$ns at .1 " $n0 setdest 600 344 100 "
$ns at .1 " $n1 setdest 300 339 100 "
# Agents Definition
#Setup a TCP connection
set tcp0 [new Agent/TCP]
$ns attach-agent $n0 $tcp0
set sink1 [new Agent/TCPSink]
$ns attach-agent $n1 $sink1
$ns connect $tcp0 $sink1
$tcp0 set packetSize_ 1500
# Applications Definition
#Setup a FTP Application over TCP connection
set ftp0 [new Application/FTP]
$ftp0 attach-agent $tcp0
$ns at 1.0 "$ftp0 start"
$ns at 5.0 "$ftp0 stop"
#Define a 'finish' procedure
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam out.nam &
exit 0
}
for {set i 0} {$i < $val(nn) } { incr i } {
$ns at $val(stop) "\$n$i reset"
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn4.awk - PROGRAM
BEGIN{
count=0;
total=0;
}
{
event =$1;
if(event=="D") {
count++;
}
}
END{
printf("No of packets dropped : %d\n",count);
}
STEPS :
( click on image to zoom )
OUTPUT :
( click on image to zoom )
CN 5 - PERFORMANCE OF GSM ON NS2
5. Implement and study the performance of GSM on NS2/NS3 (Using MAC layer) or equivalent environment.
cn5.tcl - PROGRAM
# Simulation parameters setup
set val(chan) Channel/WirelessChannel ;# channel type
set val(prop) Propagation/TwoRayGround ;# radio-propagation model
set val(netif) Phy/WirelessPhy ;# network interface type
set val(mac) Mac/802_11 ;# MAC type
set val(ifq) Queue/DropTail/PriQueue ;# interface queue type
set val(ll) LL ;# link layer type
set val(ant) Antenna/OmniAntenna ;# antenna model
set val(ifqlen) 50 ;# max packet in ifq
set val(nn) 7 ;# number of mobilenodes
set val(rp) AODV ;# routing protocol
set val(x) 1151 ;# X dimension of topography
set val(y) 900 ;# Y dimension of topography
set val(stop) 10.0 ;# time of simulation end
# Initialization
#Create a ns simulator
set ns [new Simulator]
#Setup topography object
set topo [new Topography]
$topo load_flatgrid $val(x) $val(y)
create-god $val(nn)
#Open the NS trace file
set tracefile [open out.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open out.nam w]
$ns namtrace-all $namfile
$ns namtrace-all-wireless $namfile $val(x) $val(y)
set chan [new $val(chan)];#Create wireless channel
# Mobile node parameter setup
$ns node-config -adhocRouting $val(rp) \
-llType $val(ll) \
-macType $val(mac) \
-ifqType $val(ifq) \
-ifqLen $val(ifqlen) \
-antType $val(ant) \
-propType $val(prop) \
-phyType $val(netif) \
-channel $chan \
-topoInstance $topo \
-agentTrace ON \
-routerTrace ON \
-macTrace ON \
-movementTrace ON
# Nodes Definition
#Create 7 nodes
set n0 [$ns node]
$n0 set X_ 338
$n0 set Y_ 305
$n0 set Z_ 0.0
$ns initial_node_pos $n0 20
set n1 [$ns node]
$n1 set X_ 527
$n1 set Y_ 300
$n1 set Z_ 0.0
$ns initial_node_pos $n1 20
set n2 [$ns node]
$n2 set X_ 672
$n2 set Y_ 305
$n2 set Z_ 0.0
$ns initial_node_pos $n2 20
set n3 [$ns node]
$n3 set X_ 867
$n3 set Y_ 304
$n3 set Z_ 0.0
$ns initial_node_pos $n3 20
set n4 [$ns node]
$n4 set X_ 1051
$n4 set Y_ 302
$n4 set Z_ 0.0
$ns initial_node_pos $n4 20
set n5 [$ns node]
$n5 set X_ 292
$n5 set Y_ 438
$n5 set Z_ 0.0
$ns initial_node_pos $n5 20
set n6 [$ns node]
$n6 set X_ 349
$n6 set Y_ 58
$n6 set Z_ 0.0
$ns initial_node_pos $n6 20
# Generate movement
$ns at 1 " $n6 setdest 890 58 75 "
# Agents Definition
#Setup a TCP connection
set tcp0 [new Agent/TCP]
$ns attach-agent $n5 $tcp0
set sink1 [new Agent/TCPSink]
$ns attach-agent $n6 $sink1
$ns connect $tcp0 $sink1
$tcp0 set packetSize_ 1500
# Applications Definition
#Setup a FTP Application over TCP connection
set ftp0 [new Application/FTP]
$ftp0 attach-agent $tcp0
$ns at 1.0 "$ftp0 start"
$ns at 10.0 "$ftp0 stop"
# Termination
#Define a 'finish' procedure
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam out.nam &
exit 0
}
for {set i 0} {$i < $val(nn) } { incr i } {
$ns at $val(stop) "\$n$i reset"
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn5.tcl - PROGRAM
# Simulation parameters setup
set val(chan) Channel/WirelessChannel ;# channel type
set val(prop) Propagation/TwoRayGround ;# radio-propagation model
set val(netif) Phy/WirelessPhy ;# network interface type
set val(mac) Mac/802_11 ;# MAC type
set val(ifq) Queue/DropTail/PriQueue ;# interface queue type
set val(ll) LL ;# link layer type
set val(ant) Antenna/OmniAntenna ;# antenna model
set val(ifqlen) 50 ;# max packet in ifq
set val(nn) 7 ;# number of mobilenodes
set val(rp) AODV ;# routing protocol
set val(x) 1151 ;# X dimension of topography
set val(y) 900 ;# Y dimension of topography
set val(stop) 10.0 ;# time of simulation end
# Initialization
#Create a ns simulator
set ns [new Simulator]
#Setup topography object
set topo [new Topography]
$topo load_flatgrid $val(x) $val(y)
create-god $val(nn)
#Open the NS trace file
set tracefile [open out.tr w]
$ns trace-all $tracefile
#Open the NAM trace file
set namfile [open out.nam w]
$ns namtrace-all $namfile
$ns namtrace-all-wireless $namfile $val(x) $val(y)
set chan [new $val(chan)];#Create wireless channel
# Mobile node parameter setup
$ns node-config -adhocRouting $val(rp) \
-llType $val(ll) \
-macType $val(mac) \
-ifqType $val(ifq) \
-ifqLen $val(ifqlen) \
-antType $val(ant) \
-propType $val(prop) \
-phyType $val(netif) \
-channel $chan \
-topoInstance $topo \
-agentTrace ON \
-routerTrace ON \
-macTrace ON \
-movementTrace ON
# Nodes Definition
#Create 7 nodes
set n0 [$ns node]
$n0 set X_ 338
$n0 set Y_ 305
$n0 set Z_ 0.0
$ns initial_node_pos $n0 20
set n1 [$ns node]
$n1 set X_ 527
$n1 set Y_ 300
$n1 set Z_ 0.0
$ns initial_node_pos $n1 20
set n2 [$ns node]
$n2 set X_ 672
$n2 set Y_ 305
$n2 set Z_ 0.0
$ns initial_node_pos $n2 20
set n3 [$ns node]
$n3 set X_ 867
$n3 set Y_ 304
$n3 set Z_ 0.0
$ns initial_node_pos $n3 20
set n4 [$ns node]
$n4 set X_ 1051
$n4 set Y_ 302
$n4 set Z_ 0.0
$ns initial_node_pos $n4 20
set n5 [$ns node]
$n5 set X_ 292
$n5 set Y_ 438
$n5 set Z_ 0.0
$ns initial_node_pos $n5 20
set n6 [$ns node]
$n6 set X_ 349
$n6 set Y_ 58
$n6 set Z_ 0.0
$ns initial_node_pos $n6 20
# Generate movement
$ns at 1 " $n6 setdest 890 58 75 "
# Agents Definition
#Setup a TCP connection
set tcp0 [new Agent/TCP]
$ns attach-agent $n5 $tcp0
set sink1 [new Agent/TCPSink]
$ns attach-agent $n6 $sink1
$ns connect $tcp0 $sink1
$tcp0 set packetSize_ 1500
# Applications Definition
#Setup a FTP Application over TCP connection
set ftp0 [new Application/FTP]
$ftp0 attach-agent $tcp0
$ns at 1.0 "$ftp0 start"
$ns at 10.0 "$ftp0 stop"
# Termination
#Define a 'finish' procedure
proc finish {} {
global ns tracefile namfile
$ns flush-trace
close $tracefile
close $namfile
exec nam out.nam &
exit 0
}
for {set i 0} {$i < $val(nn) } { incr i } {
$ns at $val(stop) "\$n$i reset"
}
$ns at $val(stop) "$ns nam-end-wireless $val(stop)"
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"done\" ; $ns halt"
$ns run
cn5.awk - PROGRAM
BEGIN {
count=0;
total=0;
}
{
event=$1;
if(event=="D") {
count++;
}
}
END {
printf("No of packets dropped : %d\n",count);
}
STEPS :
( click on image to zoom )
OUTPUT :
( click on image to zoom )
Subscribe to:
Posts (Atom)
