CN 6 - PERFORMANCE OF CDMA ON NS2

6. Implement and study the performance of CDMA on NS2/NS3 (Using stack called Call net) or equivalent environment.

cn6.tcl - PROGRAM

set opt(title) zero ;

set opt(stop) 100 ;

set opt(ecn) 0 ;

set opt(type) umts ;

set opt(secondDelay) 55 ;

set opt(minth) 30 ;

set opt(maxth) 0 ;

set opt(adaptive) 1 ;

0 for plain RED

set opt(flows) 0 ;

set opt(window) 30 ;

set opt(web) 2 ;

set opt(quiet) 0 ;

set opt(wrap) 100 ;

set opt(srcTrace) is ;

set opt(dstTrace) bs2 ;

set opt(umtsbuf) 10 ;

set bwDL(umts) 384000

set bwUL(umts) 64000

set propDL(umts) .150

set propUL(umts) .150

set buf(umts) 20

set ns [new Simulator]

set tf [open out.tr w]

$ns trace-all $tf

set nodes(is) [$ns node]

set nodes(ms) [$ns node]

set nodes(bs1) [$ns node]

set nodes(bs2) [$ns node]

set nodes(lp) [$ns node]

proc cell_topo {} {

global ns nodes

$ns duplex-link $nodes(lp) $nodes(bs1) 3Mbps 10ms DropTail

$ns duplex-link $nodes(bs1) $nodes(ms) 1 1 RED

$ns duplex-link $nodes(ms) $nodes(bs2) 1 1 RED

$ns duplex-link $nodes(bs2) $nodes(is) 3Mbps 50ms DropTail

puts "Cell Topology"}

proc set_link_params {t} {

global ns nodes bwUL bwDL propUL propDL buf

$ns bandwidth $nodes(bs1) $nodes(ms) $bwDL($t) simplex

$ns bandwidth $nodes(ms) $nodes(bs1) $bwUL($t)

simplex $ns delay $nodes(bs1) $nodes(ms) $propDL($t)

simplex $ns delay $nodes(ms) $nodes(bs1) $propDL($t)

simplex $ns queue-limit $nodes(bs1) $nodes(ms) $buf($t)

$ns queue-limit $nodes(ms) $nodes(bs1) $buf($t)

$ns bandwidth $nodes(bs2) $nodes(ms) $bwDL($t)

simplex $ns bandwidth $nodes(ms) $nodes(bs2) $bwUL($t)

simplex $ns delay $nodes(bs2) $nodes(ms) $propDL($t)

simplex $ns delay $nodes(ms) $nodes(bs2) $propDL($t)

simplex $ns queue-limit $nodes(bs2) $nodes(ms) $buf($t)

$ns queue-limit $nodes(ms) $nodes(bs2) $buf($t)

}

Queue/RED set summarystats_ true

Queue/DropTail set summarystats_ true

Queue/RED set adaptive_ $opt(adaptive)

Queue/RED set q_weight_ 0.0

Queue/RED set thresh_ $opt(minth)

Queue/RED set maxthresh_ $opt(maxth)

Queue/DropTail set shrink_drops_ true

Agent/TCP set ecn_ $opt(ecn) Agent/TCP

set window_ $opt(window) DelayLink set

avoidReordering_ true

source web.tcl

switch $opt(type) {

umts {cell_topo}

}

set_link_params $opt(type)

$ns insert-delayer $nodes(ms) $nodes(bs1) [new Delayer]

$ns insert-delayer $nodes(bs1) $nodes(ms) [new Delayer]

$ns insert-delayer $nodes(ms) $nodes(bs2) [new Delayer]

$ns insert-delayer $nodes(bs2) $nodes(ms) [new Delayer]

if {$opt(flows) == 0} {

set tcp1 [$ns create-connection TCP/Sack1 $nodes(is) TCPSink/Sack1 $nodes(lp) 0]

set ftp1 [[set tcp1] attach-app FTP]

$ns at 0.8 "[set ftp1] start" } if {$opt(flows) > 0} {

set tcp1 [$ns create-connection TCP/Sack1 $nodes(is) TCPSink/Sack1 $nodes(lp) 0]

set ftp1 [[set tcp1] attach-app FTP] $tcp1

set window_ 100

$ns at 0.0 "[set ftp1] start"

$ns at 3.5 "[set ftp1] stop"

set tcp2 [$ns create-connection TCP/Sack1 $nodes(is) TCPSink/Sack1 $nodes(lp) 0]

set ftp2 [[set tcp2] attach-app FTP]

$tcp2 set window_ 3

$ns at 1.0 "[set ftp2] start"

$ns at 8.0 "[set ftp2] stop" }

proc stop {} { global nodes opt nf

set wrap $opt(wrap)

set sid [$nodes($opt(srcTrace)) id]

set did [$nodes($opt(dstTrace)) id]

if {$opt(srcTrace) == "is"} { set a "-a out.tr" } else { set a "out.tr" }

set GETRC "../../../bin/getrc"

set RAW2XG "../../../bin/raw2xg"

exec $GETRC -s $sid -d $did -f 0 out.tr | \

$RAW2XG -s 0.01 -m $wrap -r > plot.xgr

exec $GETRC -s $did -d $sid -f 0 out.tr | \

$RAW2XG -a -s 0.01 -m $wrap >> plot.xgr

exec $GETRC -s $sid -d $did -f 1 out.tr | \

$RAW2XG -s 0.01 -m $wrap -r >> plot.xgr

exec $GETRC -s $did -d $sid -f 1 out.tr | \

$RAW2XG -s 0.01 -m $wrap -a >> plot.xgr

exec ./xg2gp.awk plot.xgr if {!$opt(quiet)} {

exec xgraph -bb -tk -nl -m -x time -y packets plot.xgr &

}

exit 0

}

$ns at $opt(stop) "stop"

$ns run

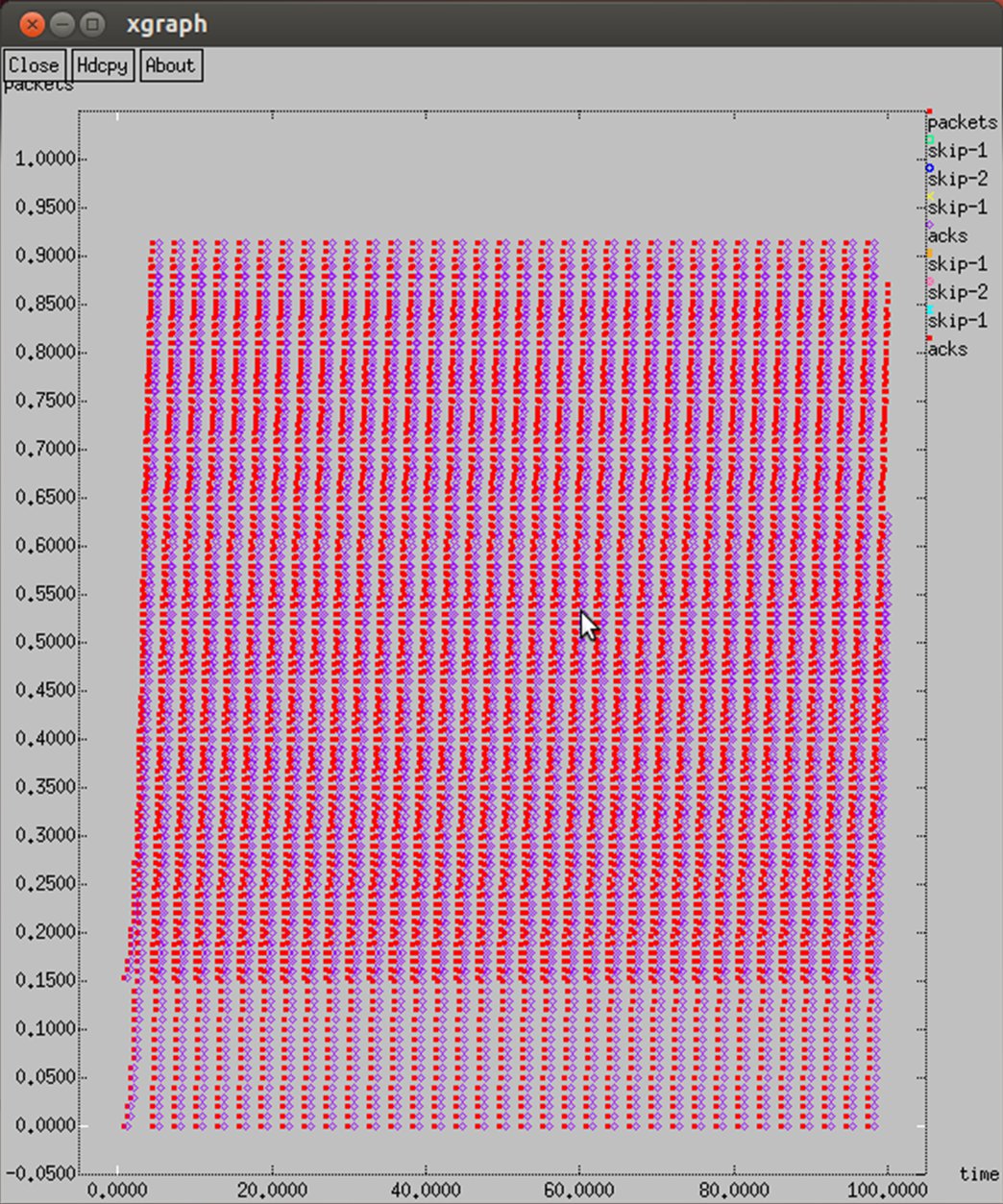

OUTPUT :

( click on image to zoom )
